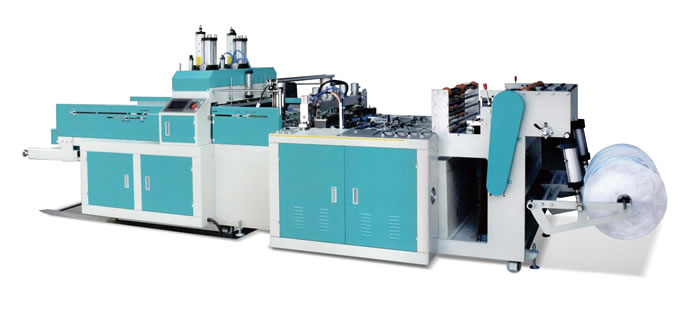

XJMXJ-400X2C/450X2C/500X2C Automatic Hot Cutting Bag Making Machine
Feature
It is suitable for hot sealing and hot cutting both printed and unprinted film, which make of HDPE, LDPE。
Main Technical Parameters
Model：XJMXJ-400X2C / XJMXJ-450X2C / XJMXJ-500X2C
Max.bag-making Width：360mmx2 / 410mmx2 / 450mmx2
Producing Length：300-600mm / 300-750mm / 300-900mm
Producing Speed：140-300x2cirle/min / 140-300x2circle/min / 140-300x2circle/min
Thickness Of Film：0.008-0.035 / 0.008-0.035 / 0.008-0.035
Main Motor：1.5kw / 1.5kw / 1.5kw
Main Power：15kw / 15kw / 15kw
Air Pressure：7kg/cm2；700ni/min / 7kg/cm2; 700ni/min / 7kg/cm2; 700ni/min
Max.dia.for Unwinding Roller：800mm / 900mm / 1000mm
Machine Weight：2300kg / 2300kg / 2300kg
Overall Dimensions(LxWxH)：2300x1550x1200mm / 2300x1650x1200mm / 2300x1750x1200mm
